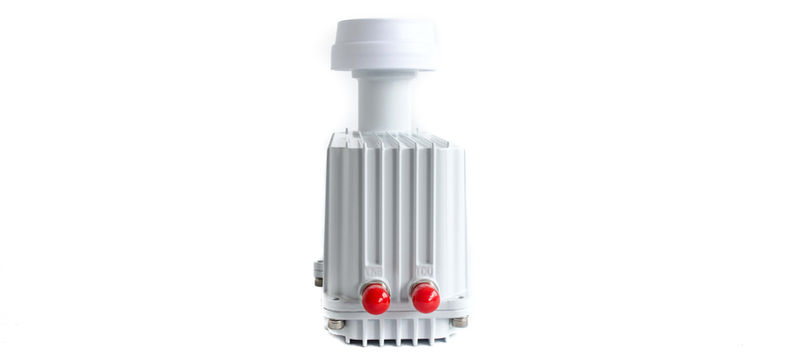

Smart LNB

All-outdoor IoT and Satellite CDN terminal

Smart LNB

The Eutelsat-compatible Smart LNB is the most advanced and tightly integrated all-outdoor consumer VSAT (Very Small Aperture Terminal) for satellite link-based CDN (Content Delivery Network), IoT (Internet Of Things) and Internet access.

Powered by AYECKA’s state-of-the-art RFModem® core and advanced CDMA technology, and operating with a sub-1-meter dish – Smart LNB is deployed with a simple DTH (satellite TV) antenna – The terminal provides narrowband connectivity for message-based return channel, a-symmetric applications.

Smart LNB offers high performance and availability, supports Ku band reception for TV signals and broadcast data, and Ka-band transmission for transactional message-based large network random traffic profiles.

The terminal is competitively priced, in terms of both initial capital expenses and ongoing operating costs (with message delivery costs comparable to those of common cellular networks).

Product Highlights

  • All Outdoor compact Satellite Terminal.

  • Operates with wide antenna size range including sub 1m Rx only.

  • DVBS2/2X forward link.

  • FSIM/RCS2 return link.

  • Compatible with Eutelsat SmartIOT services.

  • Ku/Ku, Ku/Ka and Ka/Ka (Rx/Tx bands) models.

  • Powerful 1W Ku model.

  • Low power consumption - suitable for Green energy operation.

  • IP65 Standard.

Main Applications

  • Satellite CDN.

  • IoT Gateway backhaul over Satellite.

  • M2M and SCADA.

  • Internet Access.

  • Oil and Gas.

Product Specifications


Standard 10.7-12.75 GHz Rx, 13.75-14.5 GHz Tx (Optional higher frequencies)

Ka band coverage 18.3-19.2 GHz Rx, 29.5-30 GHz Tx

Tx Power Ku: 1W, Ka: 300mW

LNB Universal dual LNBs

Channel rate up/down 160 Kbps / 80 Mbps

Routing NAT, IP forward, Multicast, DNS cashing, UPnP, DHCP

IP Encapsulation MPE According to ETSI 301 192

GSE Based on ETSI TS 102 606 and ETSI TS 102 771(1)

Traffic Interface 10/100 BaseT

Network Interface L3 / L2

Management WEB, REST

Image update OTA
